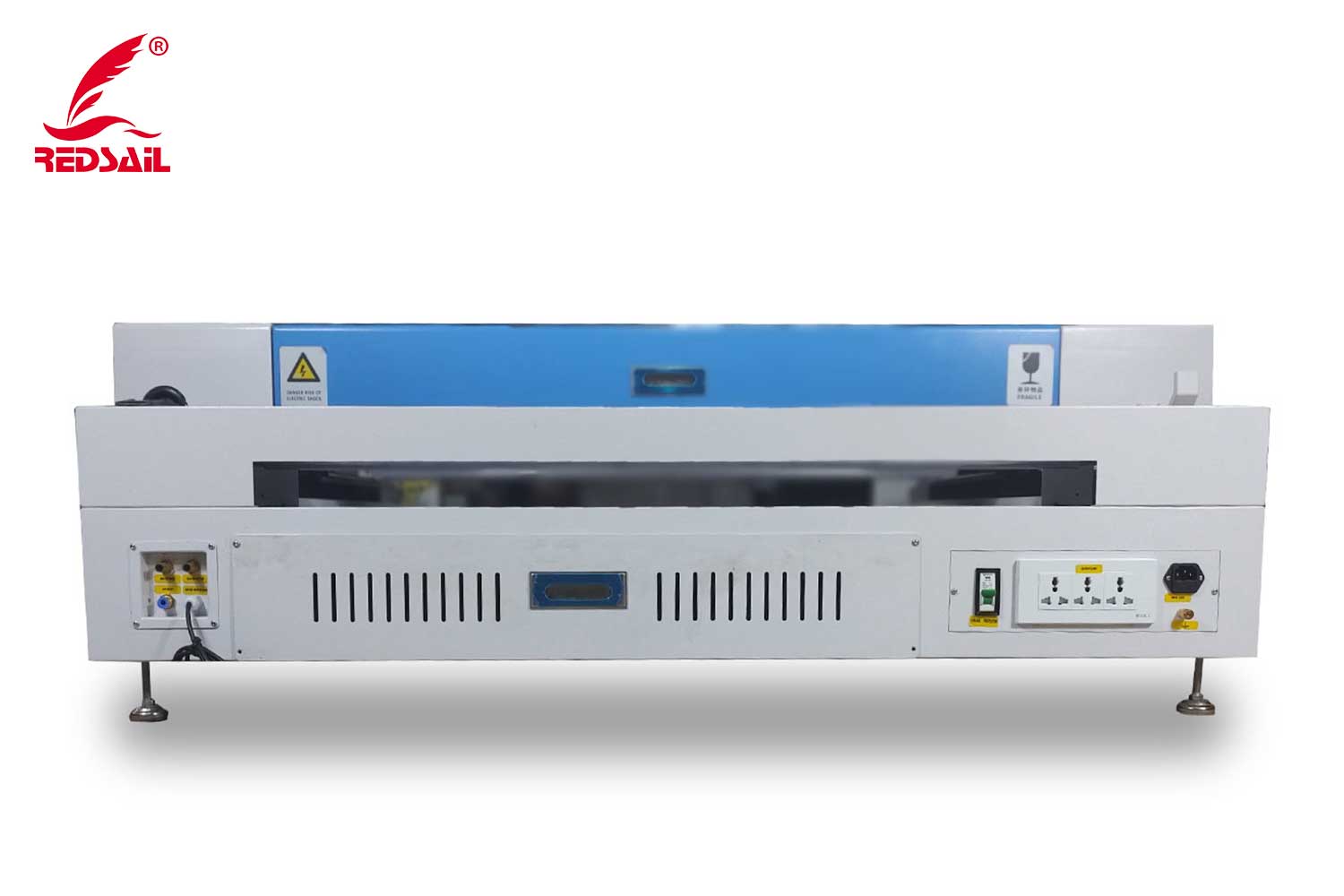

REDSAIL Professional Flatbed Laser Cutting Machine CM2435
REDSAIL Professional Flatbed Laser Cutting Machine can cut through more than 20mm thickness materials with High Powered delivers up to 180 watts. Working platform 24” x35” which can reach your all business demand at small space. REDSAIL designed and engineered single head and optional dual heads which allows laser cutting machine to vector cut and engrave non-metal materials with high working efficiency!
US $3999.00

US $3999.00 (Without shipping)(-0%)

Savings: US $0.00
Support offline trading, please contact us for more information.
Add to cart
SPECS
Model CM2435
Working Area 900mm*600mm
Laser Power 80W/100W/130W/150W/180W
Laser Tube Type Water cooling Co2 sealed glass
Controller System DSP
Image form Plt, Dxf, Bmp, Ai, Dst
Cooling system Water chiller
Working Platform Blade platform/Honeycomb
Double head Optional
Red-dot Positioning Yes
Drive type Microstepping stepper motor system
Max speed 1000mm/s
Resolution 2500DPI
PC interface USB3.0/USB Disk/NetWork
Voltage 110V or 220-240V/ 50~60Hz



APPLICATION

REDSAIL Professional Flatbed Laser Cutting Machine can cut through more than 20mm thickness materials with High Powered delivers up to 180 watts. Working platform 23” x45” which can reach your all business demand at small space. REDSAIL designed and engineered single head and optional dual heads which allows laser cutting machine to vector cut and engrave non-metal materials with high working efficiency! New available Driving way with less maintenance and longer working life. Upgrade your laser to be higher cutting power (includes the higher industry water chiller). Compatible LightBurn offers an All-In-One laser software thats both intuitive and feature rich.

FEATURES



ASK ABOUT OUR FREE ON-SITE DEMO!



We can make a free LIVE demonstration online!

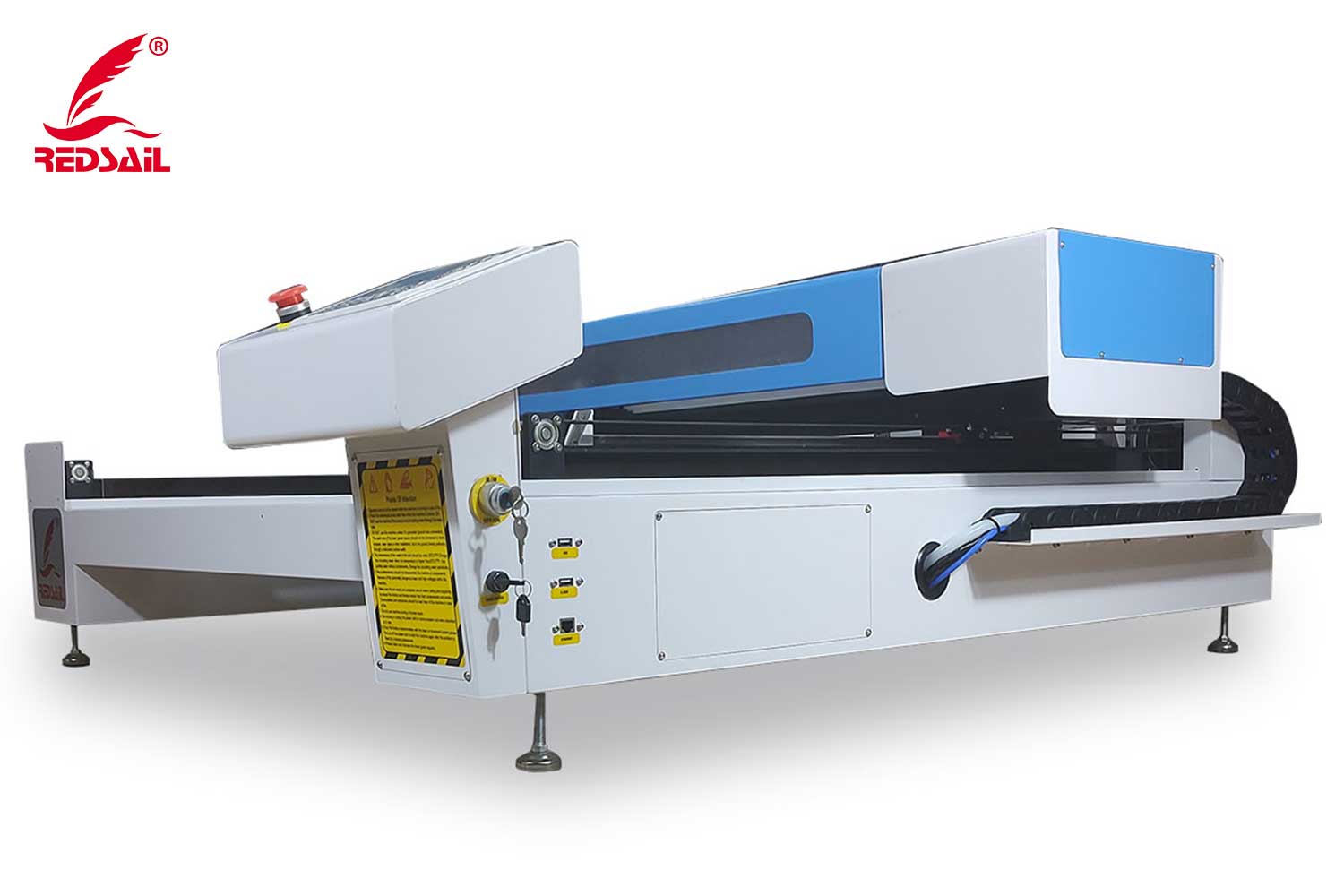

REDSAIL Flatbed Higher CO2 Laser Machine



REDSAIL Flatbed Laser Cutting Machine - With 100W-180W watts of cutting power and a life time performance of up to 10,000 hours.



We thoroughly perform watt reader tests throughout the assembly process to ensure a quality beam profile and maximum power.



The Flatbed Laser Cutting Machine is engineered to handle demanding production environments and long workdays while delivering consistent results for every job. By constantly refining and improving the beams power density the flatbed laser cutting machine generates a powerful cutting beam with exceptional engraving resolution. Each laser tube includes 18 Months warranty and each Flatbed Laser Machine has lifetime free warranty.



Laser Software

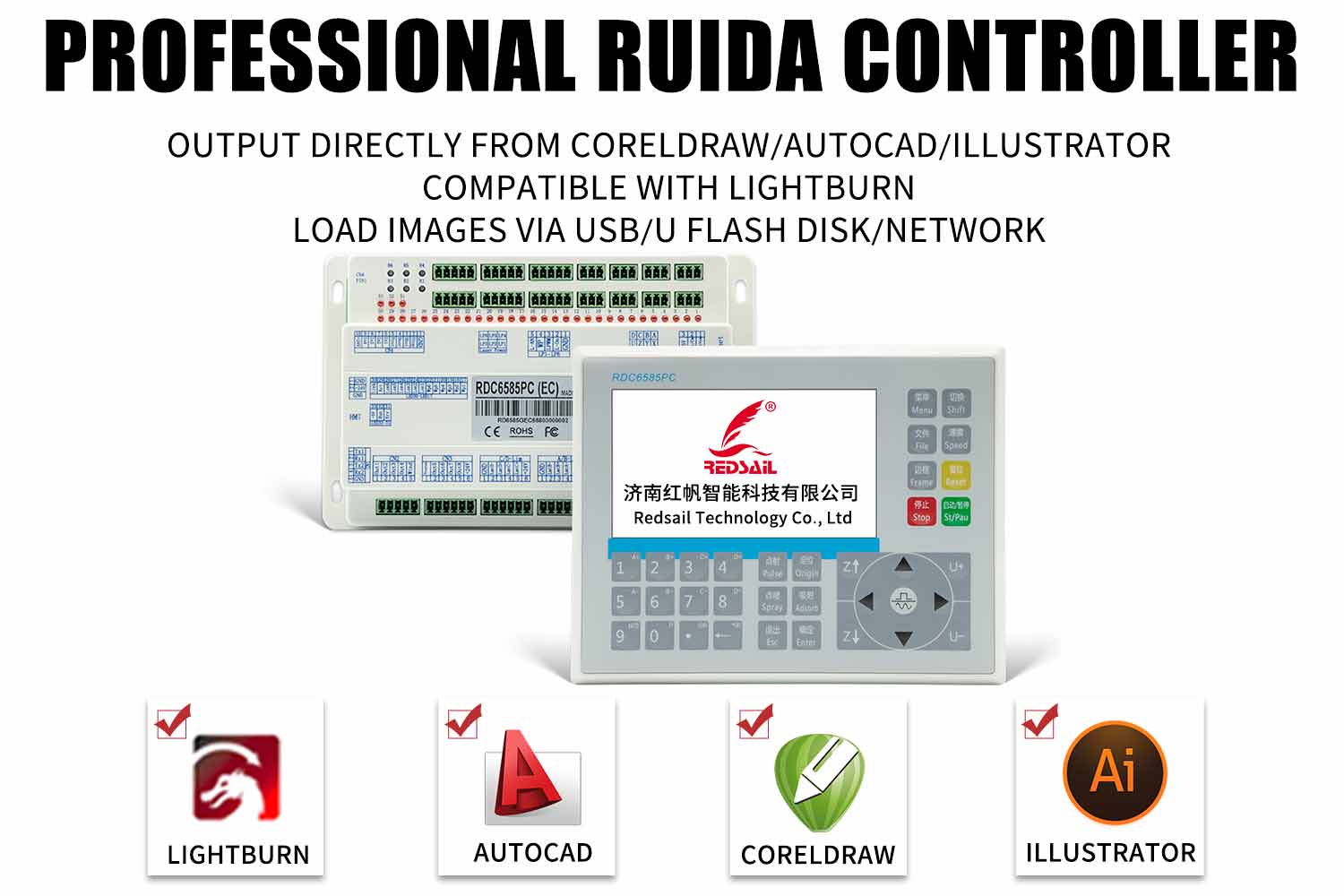

RUIDA DIGITAL CONTROLLER: The intuitive control panel with a digital display allows complete control of the laser head, pausing and stopping projects, adjusting laser power and speed settings, file viewing, and project framing via Windows-compatible RDWorks v8 which can also be compatible with LightBurn software-- all-in-one layout, editing, and control software package that is extremely intuitive and feature rich.



Honey Comb & Knife Blade Platforms Offers Flexible Material



Both the Knife Blade and Honeycomb platforms are included for flexibility whether cutting or engraving material.

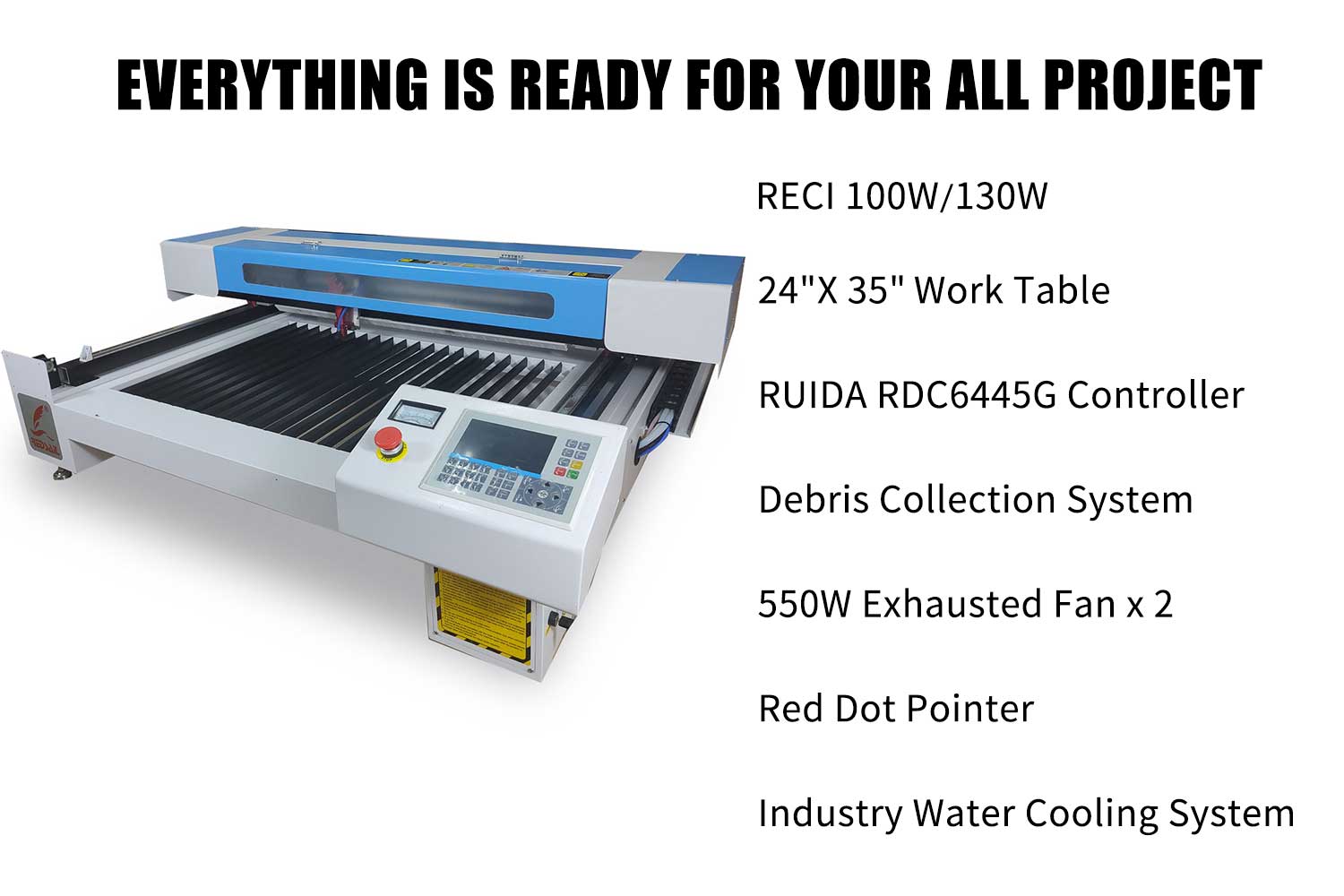

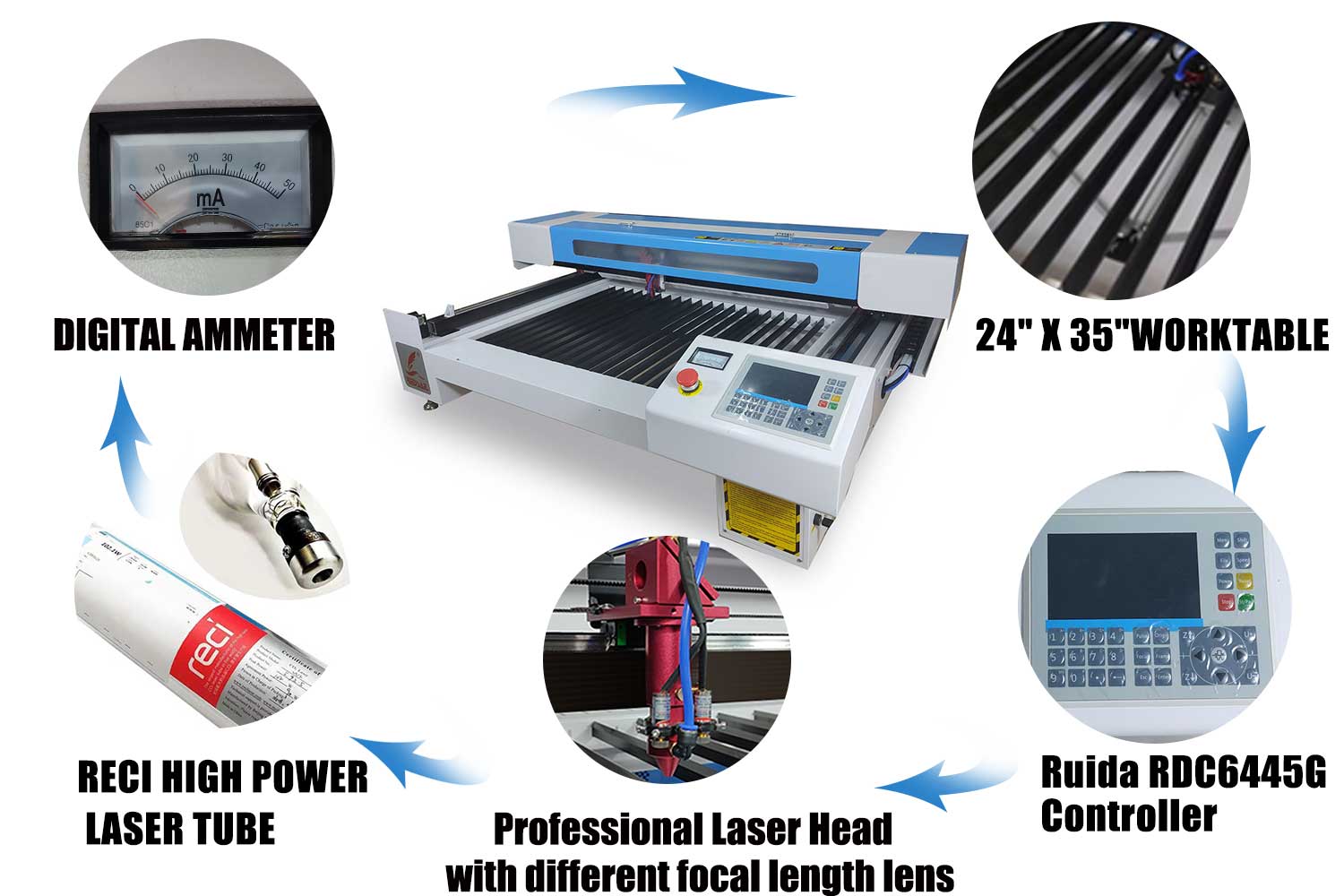

REDSAIL Flatbed Laser Details:



VENTILATION:550W x2 Exhausted fan expels smoke and fumes to create a safer workspace and extend the service life of your machine.

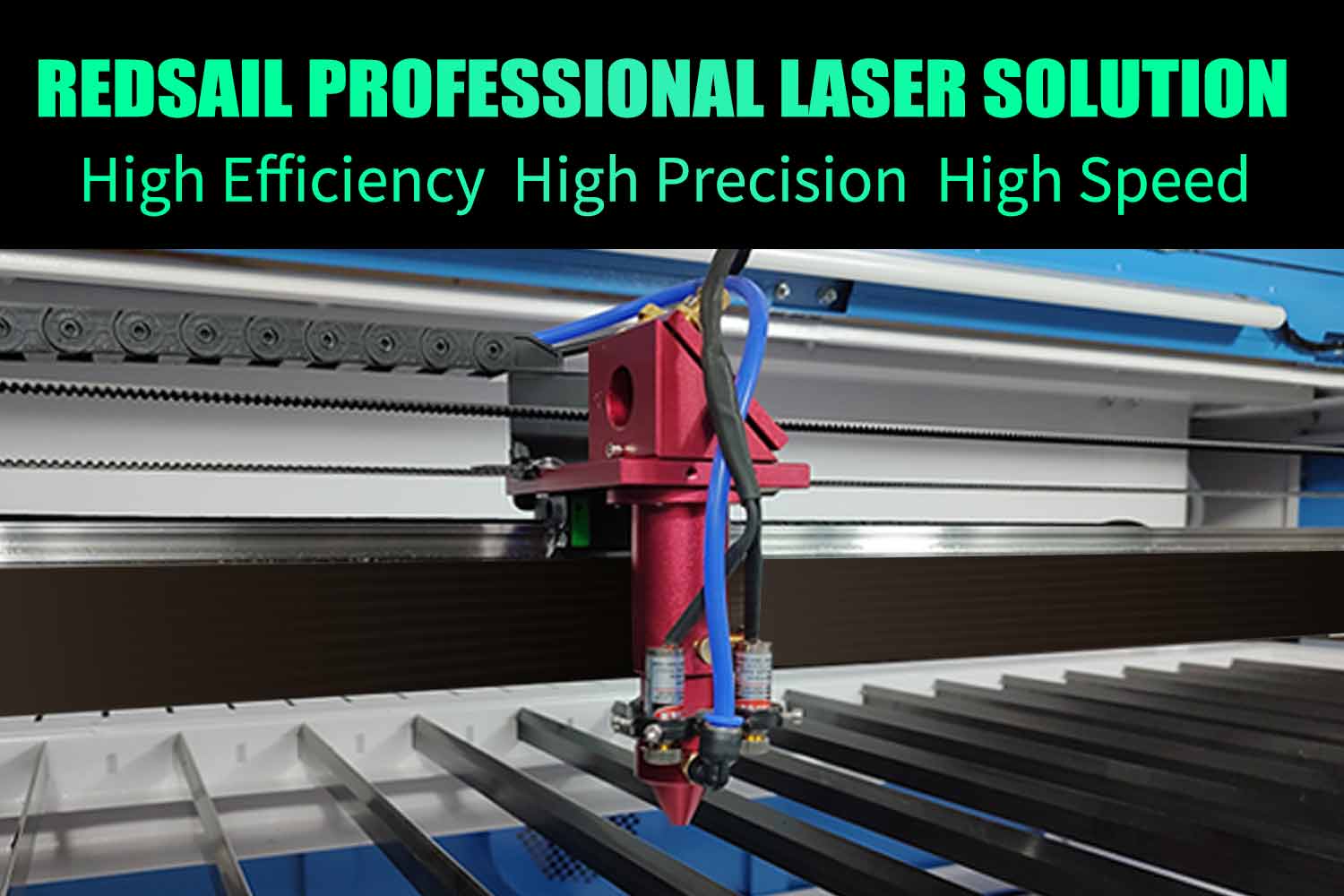

RED DOT GUIDANCE:More accurate red dot pointer mounted on the laser head quickly indicates engraving points, marks the machine’s path, and identifies the positioning size, allowing an effortless project setup process.



AIR ASSIST: Provides critical air flow during laser processing preventing material deformation.Also, Keeps dust, debris and combustible gas away from laser head preventing focal lens contamination, keeping your worktable cleaner and more safe and engravings more precise.



LINEAR RAIL GUIDING SYSTEM:Equipped with the better transmitting system -new available Drive highest precision in same class stepper motor drive system and PMI linear rail guide way for higher precision and longer service life.



WATER PROTECTION SYSTEM:Pre-installed signal plug along with the included industry water chiller allow for a fast and easy setup, protecting the laser tube max working life.





Stepper Drive System



New available Drive highest precision in same class stepper motor drive system.



New & Easy Laser/PC Connectivity Via. WI-FI, Ethernet, Or USB



Various laser to PC connectivity choices - USB, Ethernet, or WiFI (router included).



New 256MB USB Flash Drive For Alternative Job Storage



As an alternative to the onboard memory available on the controller card you can also save or run jobs from the 256 MB USB flash drive.



PC Compatibility Windows, Mac OS, Or Linux



Just Using your current computer! Windows 32 or 64 bit is ok for any software, Windows, Mac OS, and even Linux operating systems 32 or 64 bit is ok if you use LightBurn.



Quality Management System -CE/FDA



More reliable with CE and FDA certificate.



Tech Support 24 hours



REDSAIL Tech Support team is here to serve and support from the day you receive your REDSAIL Laser and for as long as you own the machine. Our tech support utilizes video, help manuals, phone, email, remote support via. Team Viewer, FaceTime, and even on-site support if necessary.



Warehoused Replacement Parts & Accessories For Quick Replacement



Having supported thousands of businesses, hobbyists, educational, military, and Government institutions we know and understand how critical it is to be able to deliver replaced spare parts and timely support.  Quality support begins with warehousing ALL parts to the machine you purchase - in our facilities.  That way if you have an issue with your laser cutter, we can not only diagnose the problem and can also ship you the part you need same or next day.  This way you experience minimal down time.



Lifetime Free Warranty



REDSAIL has improved its warranty!  We offer lifetime free warranty for all laser machines.

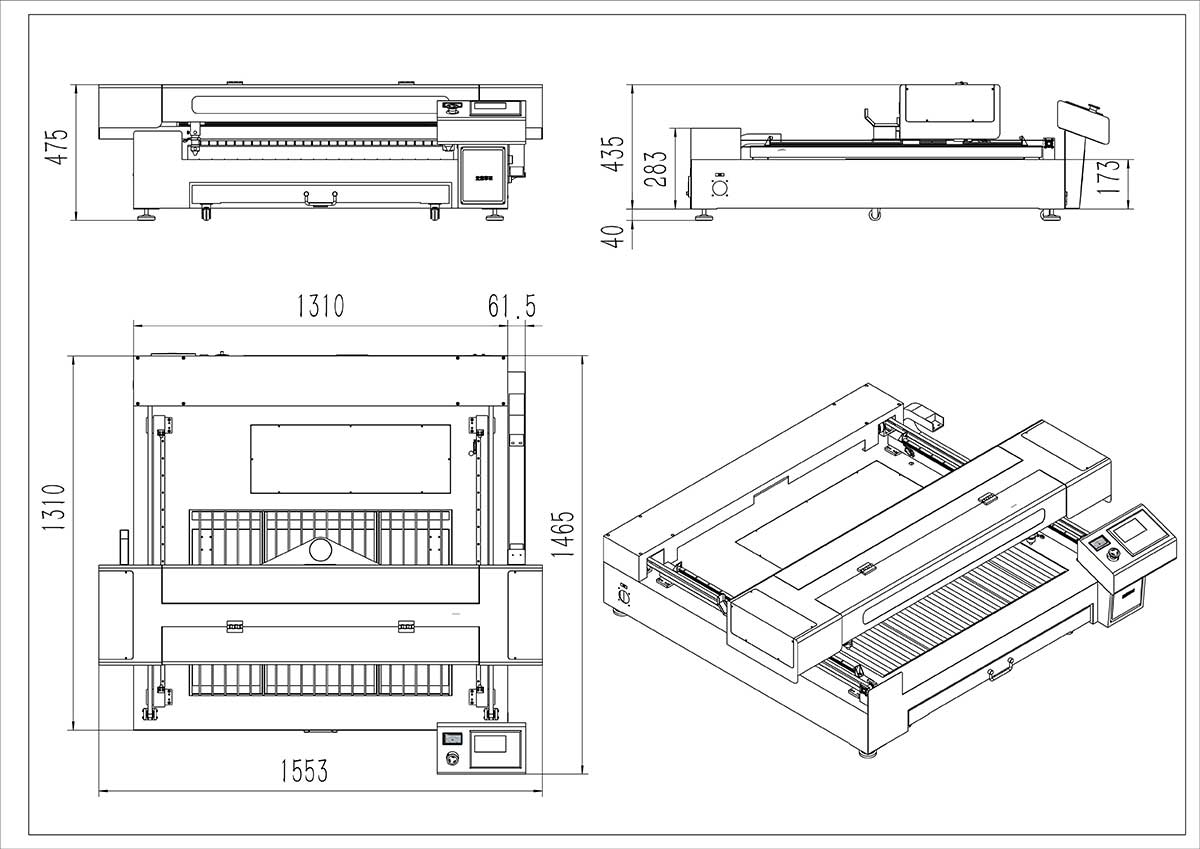

DIMENSIONS

Product sample drawings
