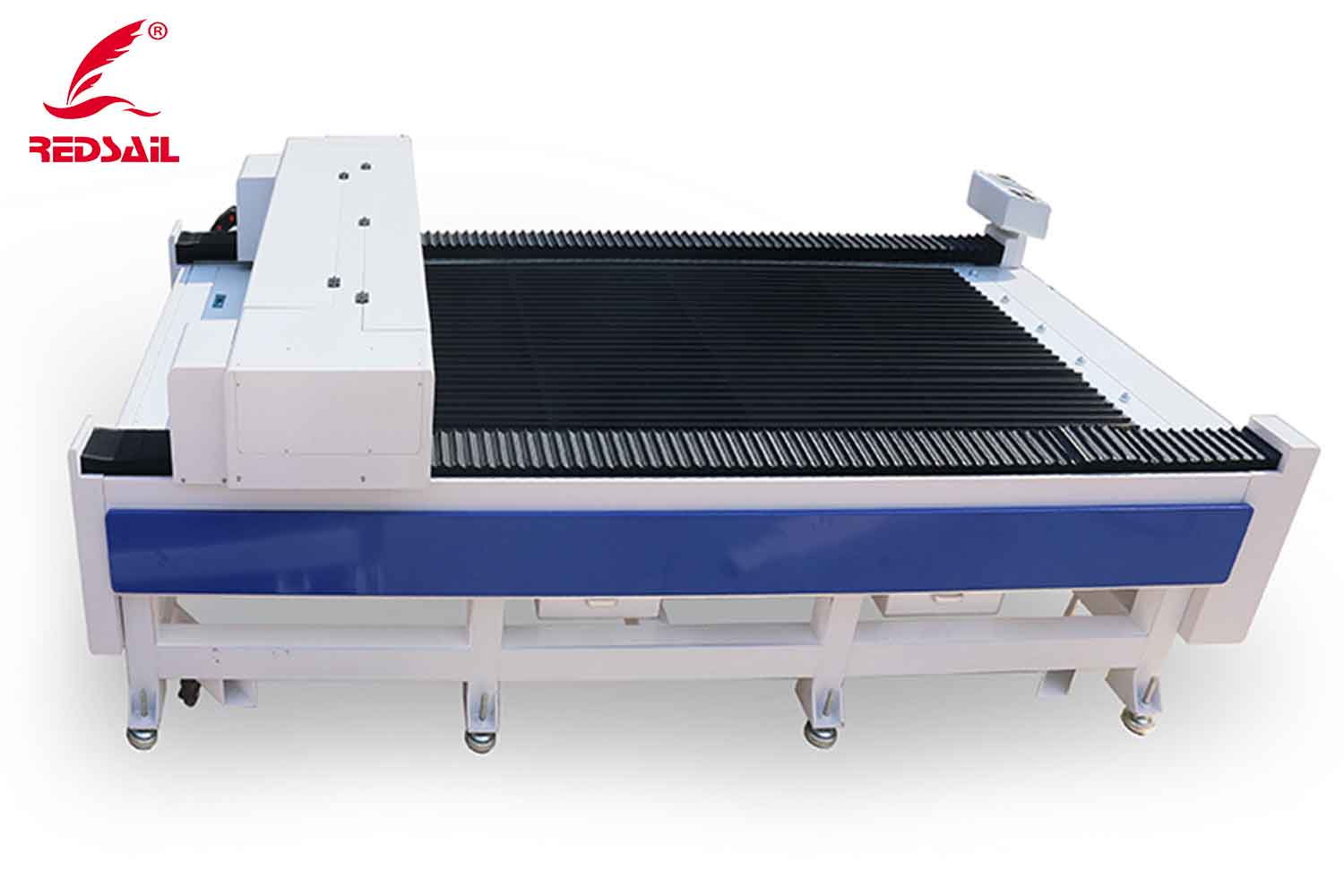

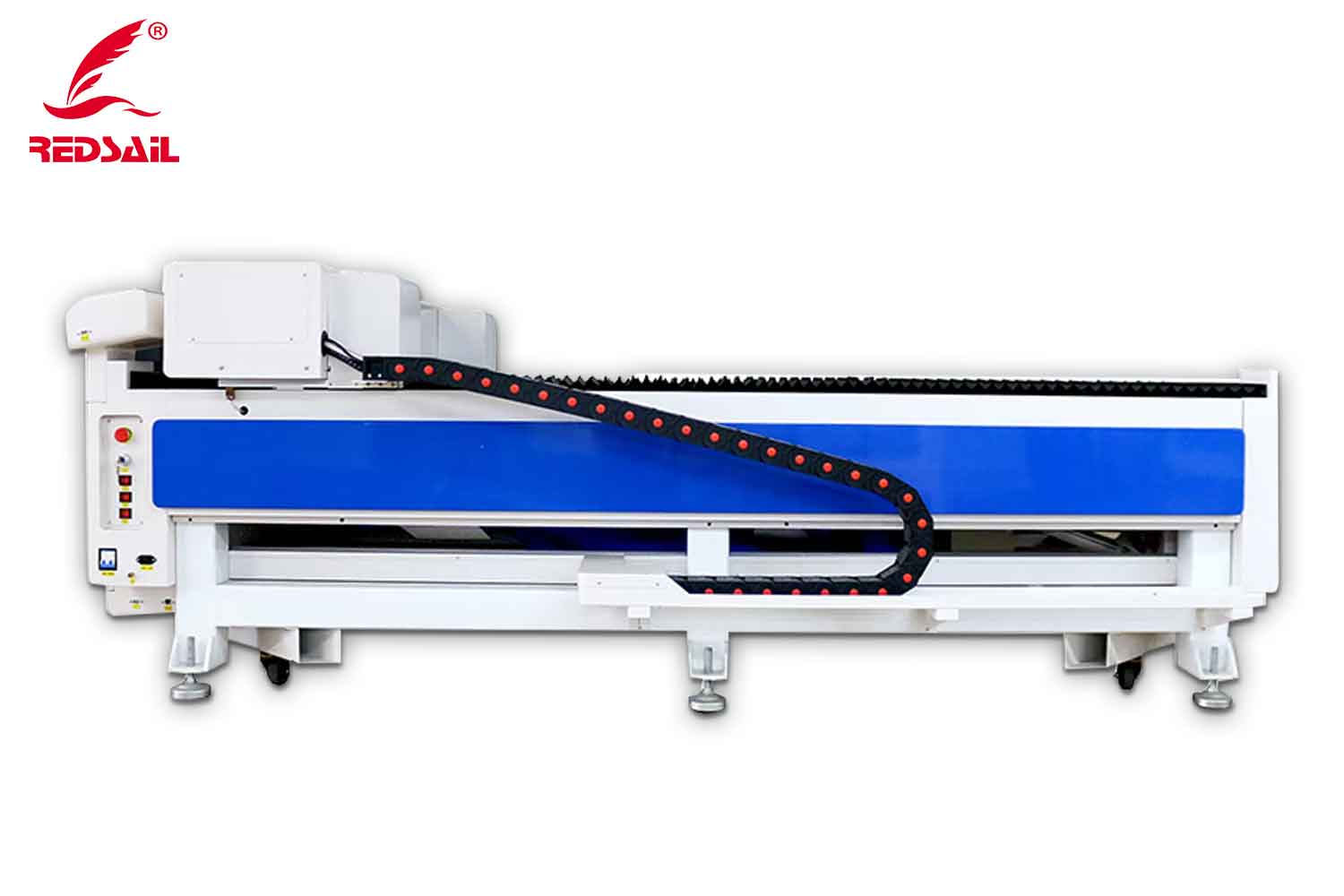

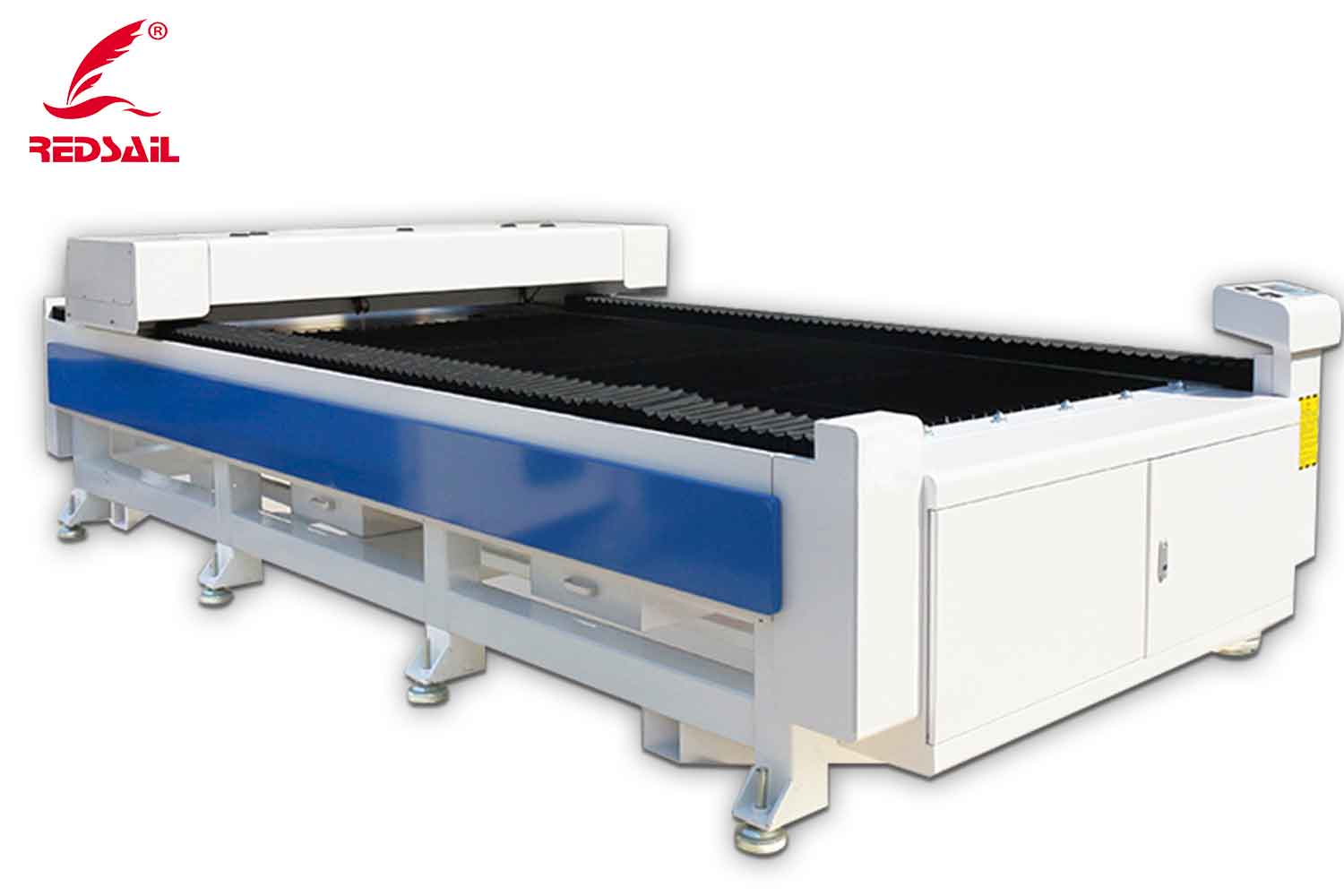

REDSAIL High Power Flatbed Laser Cutting Machine CM1325H
REDSAIL High Powered Flatbed Laser Cutting Machine delivers up to 680 watts. With a choice between 300W or 480W or 680W power the non-metal laser cutting machine provides high speed, high power cutting. The 300W allows you to cut up to 30mm acrylic and mdf/ply in one pass, you'll also be able to cut standard thinner materials (e.g. 3mm acrylic) at up to twice the speed of a standard 150W machine, reducing production time by up to 50%!
US $9999.00

US $9999.00 (Without shipping)(-0%)

Savings: US $0.00
Support offline trading, please contact us for more information.
Add to cart
Model CM1325/CM1318/CM1625
Working Area 1300mm*2500mm/1300mm*1800mm/1600mm*2500mm
Laser Power


Laser Tube Type Water cooling Co2 sealed glass
Controller System DSP
Image form Plt, Dxf, Bmp, Ai, Dst
Cooling system Water chiller
Working Platform Blade platform/Honeycomb
Double head Optional
Red-dot Positioning Yes
Drive type Microstepping stepper motor system
Max speed 1000mm/s
Resolution 2500DPI
PC interface USB3.0/USB Disk/NetWork
Voltage 110V or 220-240V/ 50~60Hz



REDSAIL High Power Laser Cutting Machines are for the different kinds of application, such as Advertising industry, Office Industry, Packaging Industry, Gift Industry, Decoration Industry, Printing Industry and so on.




We can make a free LIVE demonstration online!


REDSAIL High Power CO2 Laser Machine


REDSAIL High Power Flatbed Laser Cutting Machine - With 300W-680W watts of cutting power and a life time performance of up to 10,000 hours.


We thoroughly perform watt reader tests throughout the assembly process to ensure a quality beam profile and maximum power.


The High Power Flatbed Laser Cutting Machine is engineered to handle demanding production environments and long workdays while delivering consistent results for every job. By constantly refining and improving the beams power density the flatbed laser cutting machine generates a powerful cutting beam with exceptional engraving resolution. Each laser tube includes 18 Months warranty and each Flatbed Laser Machine has lifetime free warranty.


Laser Software

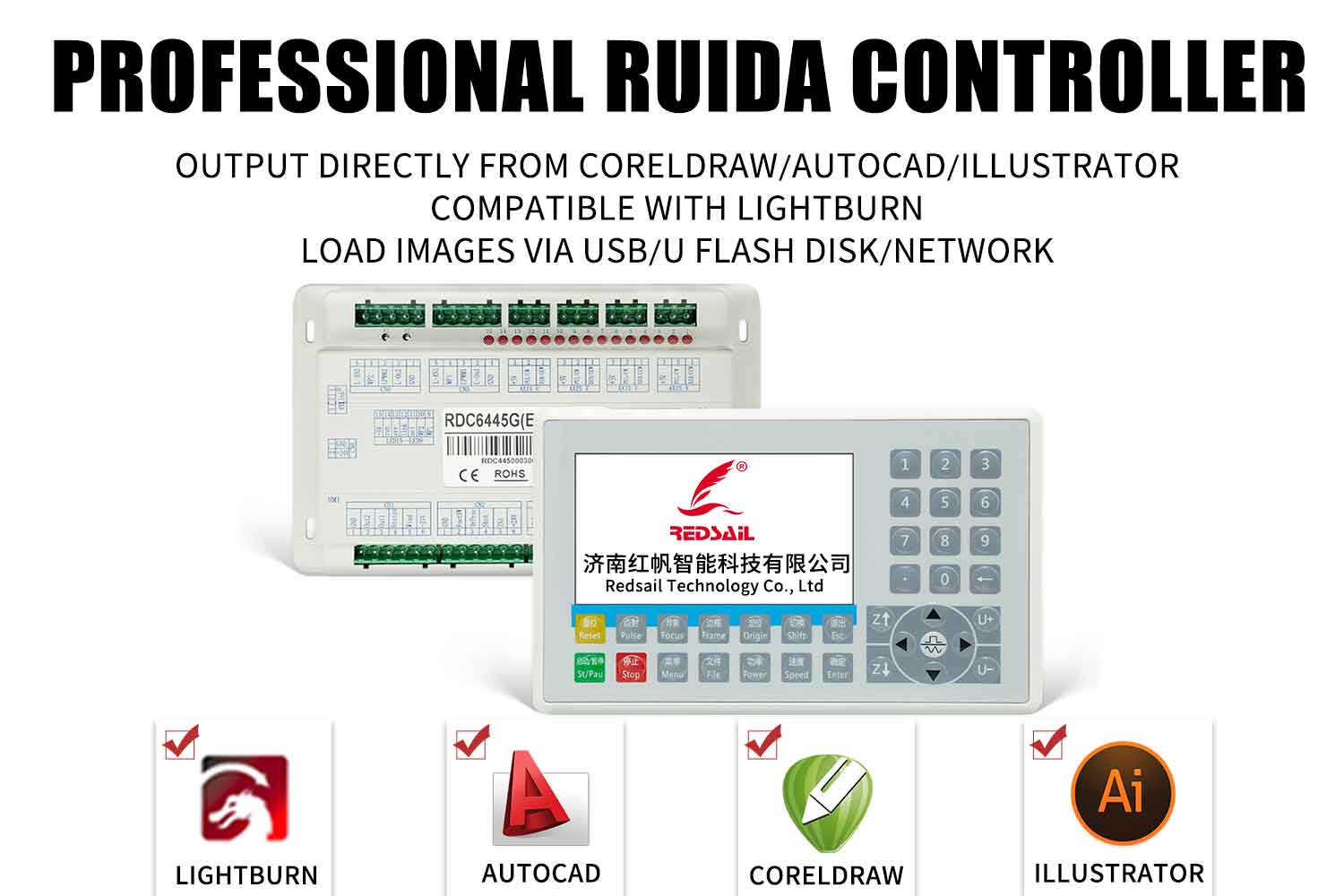

RUIDA DIGITAL CONTROLLER: The intuitive control panel with a digital display allows complete control of the laser head, pausing and stopping projects, adjusting laser power and speed settings, file viewing, and project framing via Windows-compatible RDWorks v8 which can also be compatible with LightBurn software-- all-in-one layout, editing, and control software package that is extremely intuitive and feature rich.


Honey Comb & Knife Blade Platforms Offers Flexible Material


Both the Knife Blade and Honeycomb platforms are included for flexibility whether cutting or engraving material.


REDSAIL High Power Flatbed Laser Details:


VENTILATION:Professional Upward Smoking System, the extra exhausted hole is built on the gantry and equipped with an extra exhausted fan which can absorb out more smoking fully. 550W x3 Exhausted fan expels smoke and fumes to create a safer workspace and extend the service life of your machine.


RED DOT GUIDANCE:More accurate red dot pointer mounted on the laser head quickly indicates engraving points, marks the machine’s path, and identifies the positioning size, allowing an effortless project setup process.


AIR ASSIST: Professional Air Compressor-Provides critical air flow during laser processing preventing material deformation.Also, Keeps dust, debris and combustible gas away from laser head preventing focal lens contamination, keeping your worktable cleaner and more safe and engravings more precise.


FIRE PROTECTION DEVICE:Blow large airs and put out the fire to avoid fire in the process of cutting. With more clean cutting and keep safe.


LINEAR RAIL GUIDING SYSTEM:Equipped with the better transmitting system -new available Drive highest precision in same class stepper motor drive system and PMI linear rail guide way for higher precision and longer service life.


Constant Laser Path System: In-line beam combiner for easy mirror alignment and set-up


WATER PROTECTION SYSTEM:Pre-installed signal plug along with the included industry water chiller allow for a fast and easy setup, protecting the laser tube max working life.


WATER COOLING LASER PATH SYSTEM:Water cooling mirror with more stable laser power and long working life.



Stepper Drive System


New available Drive highest precision in same class stepper motor drive system.

New & Easy Laser/PC Connectivity Via. WI-FI, Ethernet, Or USB


Various laser to PC connectivity choices - USB, Ethernet, or WiFI (router included).


New 256MB USB Flash Drive For Alternative Job Storage


As an alternative to the onboard memory available on the controller card you can also save or run jobs from the 256 MB USB flash drive.


PC Compatibility Windows, Mac OS, Or Linux


Just Using your current computer! Windows 32 or 64 bit is ok for any software, Windows, Mac OS, and even Linux operating systems 32 or 64 bit is ok if you use LightBurn.

Quality Management System -CE/FDA


More reliable with CE and FDA certificate.


Tech Support 24 hours


REDSAIL Tech Support team is here to serve and support from the day you receive your REDSAIL Laser and for as long as you own the machine. Our tech support utilizes video, help manuals, phone, email, remote support via. Team Viewer, FaceTime, and even on-site support if necessary.


Warehoused Replacement Parts & Accessories For Quick Replacement


Having supported thousands of businesses, hobbyists, educational, military, and Government institutions we know and understand how critical it is to be able to deliver replaced spare parts and timely support.  Quality support begins with warehousing ALL parts to the machine you purchase - in our facilities.  That way if you have an issue with your laser cutter, we can not only diagnose the problem and can also ship you the part you need same or next day.  This way you experience minimal down time.


Lifetime Free Warranty


REDSAIL has improved its warranty!  We offer lifetime free warranty for all laser machines.

Product sample drawings
