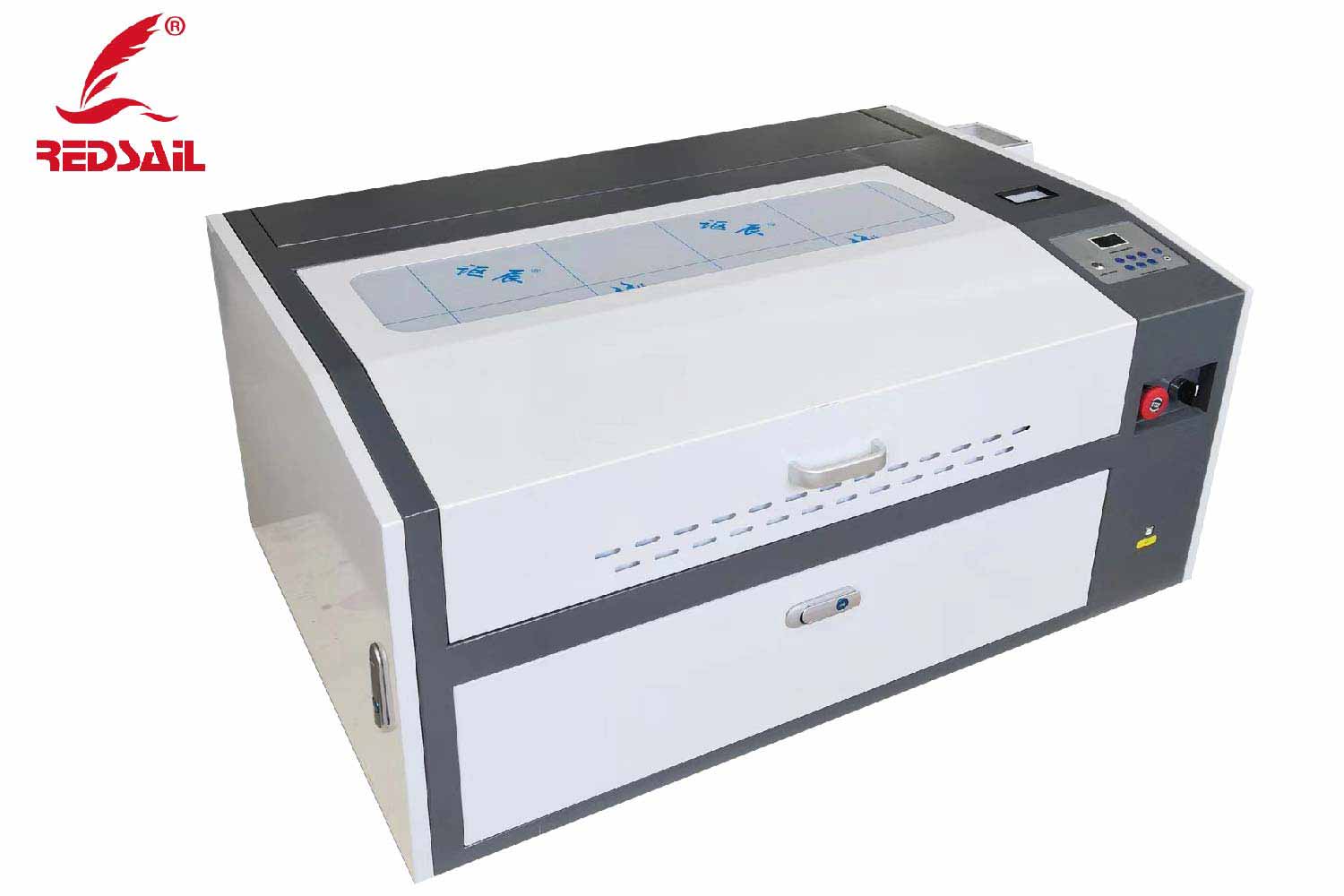

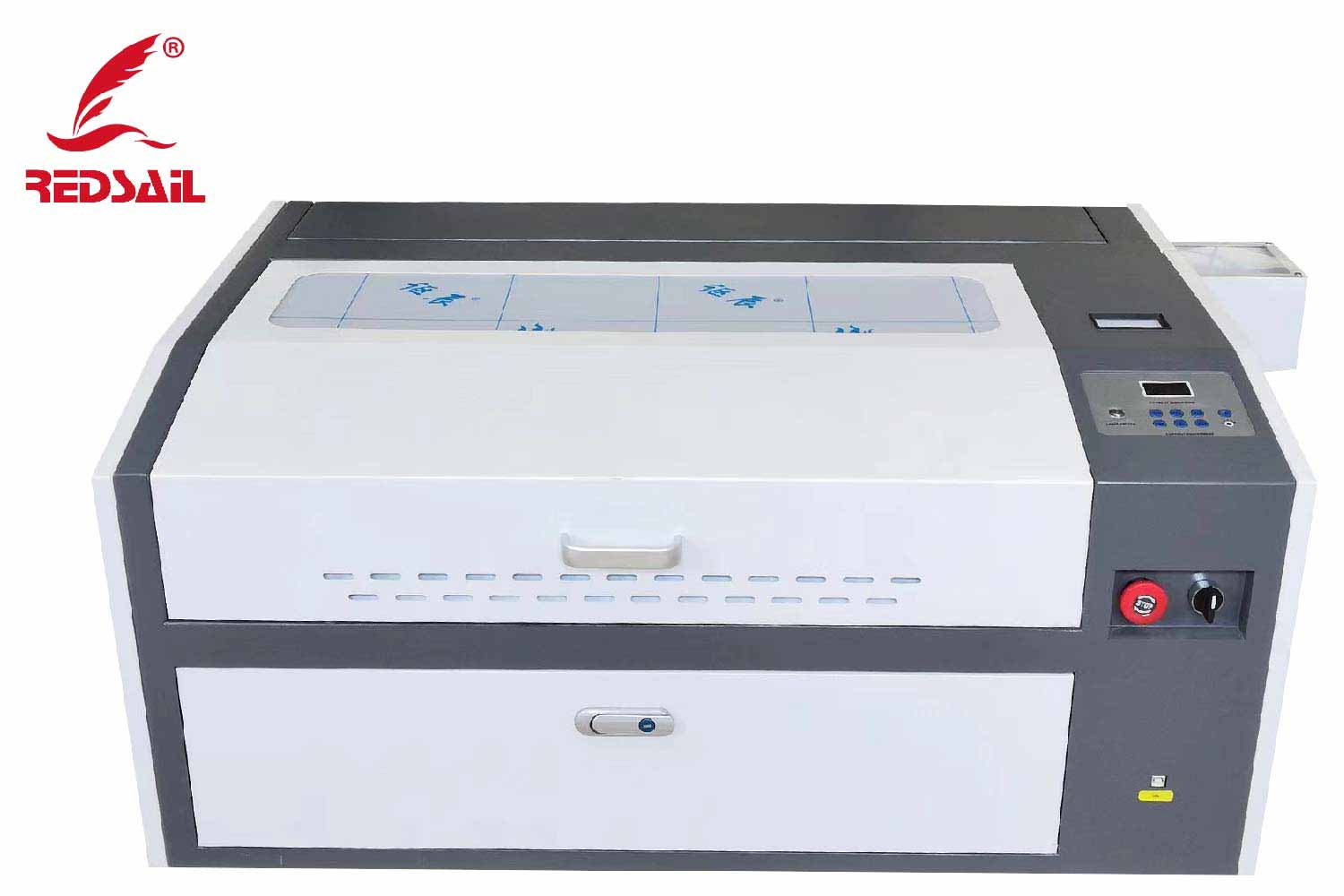

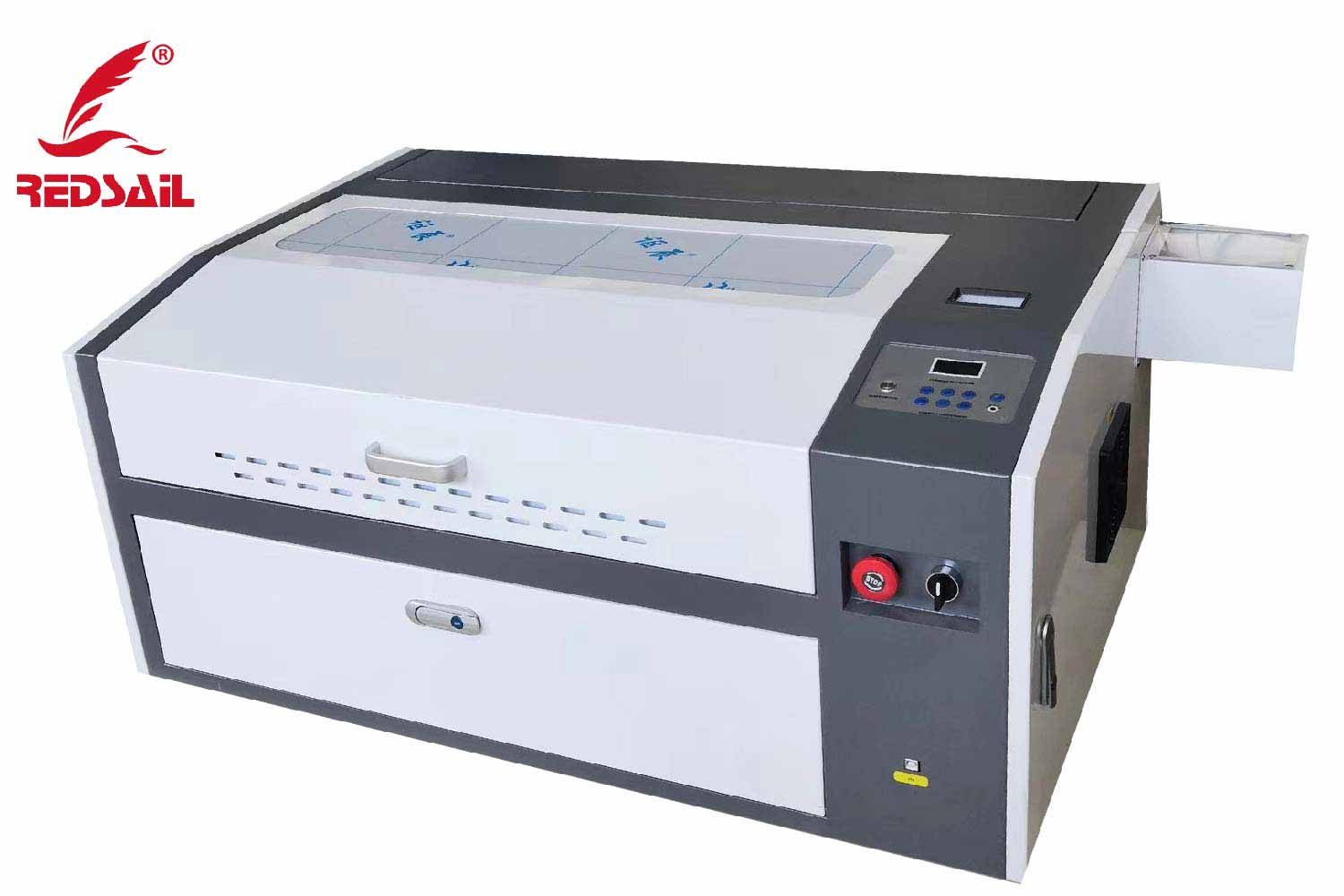

REDSAIL Economical Breeze Series Laser Engraver and Cutter M3050
If you're looking for a economical grade desktop laser engraving or cutting machine to inspire your small business or DIY projects, then REDSAIL Breeze Series Laser Engraver and Cutter may be the best laser machine under $1K on the market today. Get 1200mm/s more speed and more CO2 power vs. competing hobby lasers.
US $699.00

US $699.00 (Without shipping)(-0%)

Savings: US $0.00
Support offline trading, please contact us for more information.
Add to cart
SPECS

Working Area (mm)

500 x 300

Laser Power

40W/50W/60W

Control System

CORELLASER/LASERDRAW

Laser Type

Sealed Co2 glass, water cooling

Water Cooling System

Water Pump

Working Table

Honeycomb

Adjustable Table

Motorized up/down table

Drive Type

Stepper Motor

Transmission Type

REDSAIL Patent High Speed Driving System

Max Speed

1200 mm/s

Image Format

PLT, DXF, BMP, AI, DST etc.

Interface

USB3.0

Resolution

2500 DPI

Power

110V or 220~240V / 50-60HZ

Optional

Upgrade Water Chiller(CW-3000/CW-5000/CW-5200)

Red-dot positioning function

Rotary Attachment



APPLICATION

REDSAIL Breeze Laser Engraving and Cutting Machines are for the different kinds of application, such as Advertising industry, Office Industry, Packaging Industry, Gift Industry, Decoration Industry, Printing Industry and so on.

FEATURES

M3050

ASK ABOUT OUR FREE ON-SITE DEMO!



We can make a free LIVE demonstration online!



REDSAIL BREEZE-SERIES CO2 Laser Machine



REDSAIL Breeze Series - Select between 40 watts to 60 watts of cutting power with a life time performance of up to 2,500 hours. We test our laser multiple times throughout the assembly process to ensure a quality beam profile and maximum power.



The Breeze-Series is engineered to handle demanding production environments and long workdays while delivering consistent results for every job. By constantly refining and improving the beams power density the Breeze-Series generates a powerful cutting beam with exceptional engraving resolution. Each Breeze-Series Laser Machine has lifetime free warranty.



Laser Software



DIGITAL CONTROL & TEMPERATURE LCD: A user-friendly LCD control board sets the laser power while two temperature displays keep you updated with the laser power supply and cooling water temperature levels.

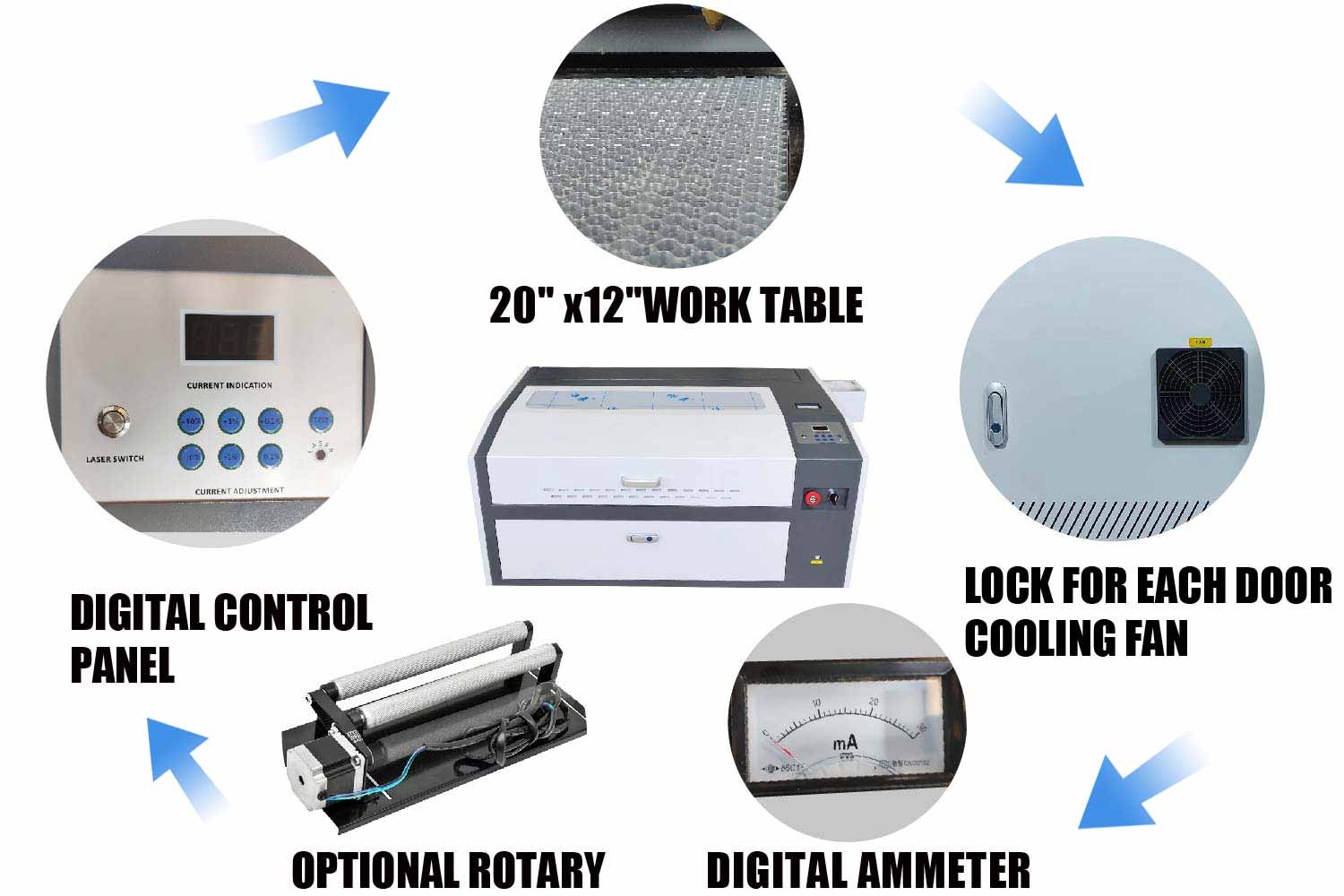

REDSAIL Breeze Laser Details:



VENTILATION:A pre-installed fan expels smoke and fumes to create a safer workspace and extend the service life of your machine.



RED DOT GUIDANCE:Red dot pointer mounted on the laser head quickly indicates engraving points, marks the machine’s path, and identifies the positioning size, allowing an effortless project setup process.



AIR ASSIST: Provides critical air flow during laser processing preventing material deformation.Also, Keeps dust, debris and combustible gas away from laser head preventing focal lens contamination, keeping your worktable cleaner and more safe and engravings more precise.

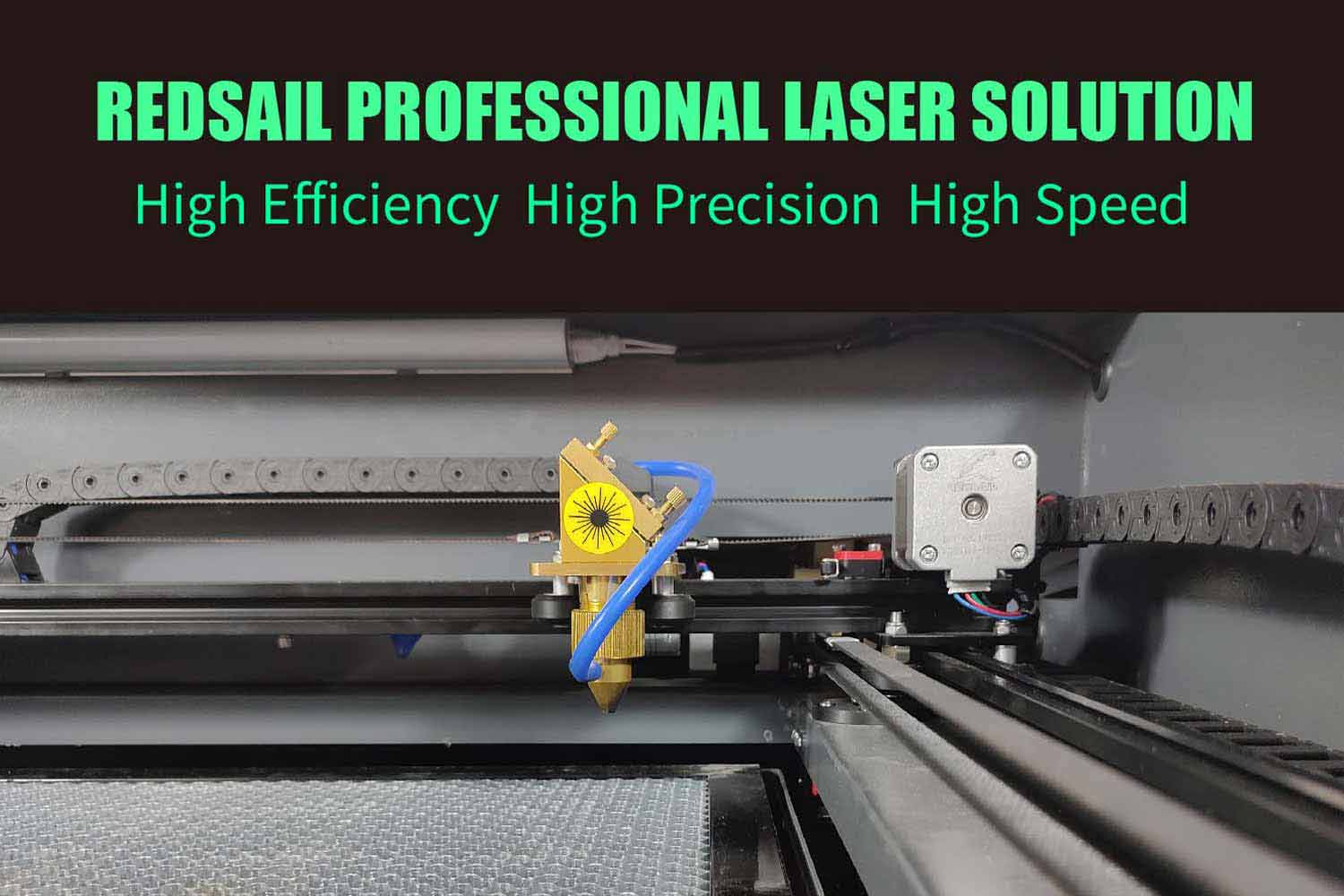

REDSAIL PATENT DRIVING GUIDING SYSTEM:Equipped with the better transmitting system - REDSAIL Patent professional high speed driving way can reach the engraving speed to be 1200mm/s with better working result, higher working efficiency and longer service life.



WATER PROTECTION SYSTEM:Pre-installed signal plug along with the included industry water chiller allow for a fast and easy setup, protecting the laser tube max working life.



CONVENIENT MOBILITY:Four removable wheels allow to move portability across your workspace. It can both put on desktop and stand on ground.



Push Button Z-Axis



Motorized Z-Table With Working Height Of 8" accommodates taller objects.



The taller cabinet for the REDSAIL Breeze economical series laser engraver gives you additional work space including up to 8" of vertical Z-axis movement.



At the push of a button you can lower the platform to accommodate taller objects of up to 10" in height.



Stepper Drive System



New available Drive highest precision in same class stepper motor drive system.



New & Easy Laser/PC Connectivity Via. Or USB



Various laser to PC connectivity choices - USB



PC Compatibility Windows



Just Using your current computer! Windows 32 or 64 bit is ok for any software,



Quality Management System -CE/FDA



More reliable with CE and FDA certificate.



Tech Support 24 hours



REDSAIL Tech Support team is here to serve and support from the day you receive your REDSAIL Laser and for as long as you own the machine. Our tech support utilizes video, help manuals, phone, email, remote support via. Team Viewer, FaceTime, and even on-site support if necessary.



Warehoused Replacement Parts & Accessories For Quick Replacement



Having supported thousands of businesses, hobbyists, educational, military, and Government institutions we know and understand how critical it is to be able to deliver replaced spare parts and timely support.  Quality support begins with warehousing ALL parts to the machine you purchase - in our facilities.  That way if you have an issue with your laser cutter, we can not only diagnose the problem and can also ship you the part you need same or next day.  This way you experience minimal down time.



Lifetime Free Warranty



REDSAIL has improved its warranty!  We offer lifetime free warranty for all laser machines.

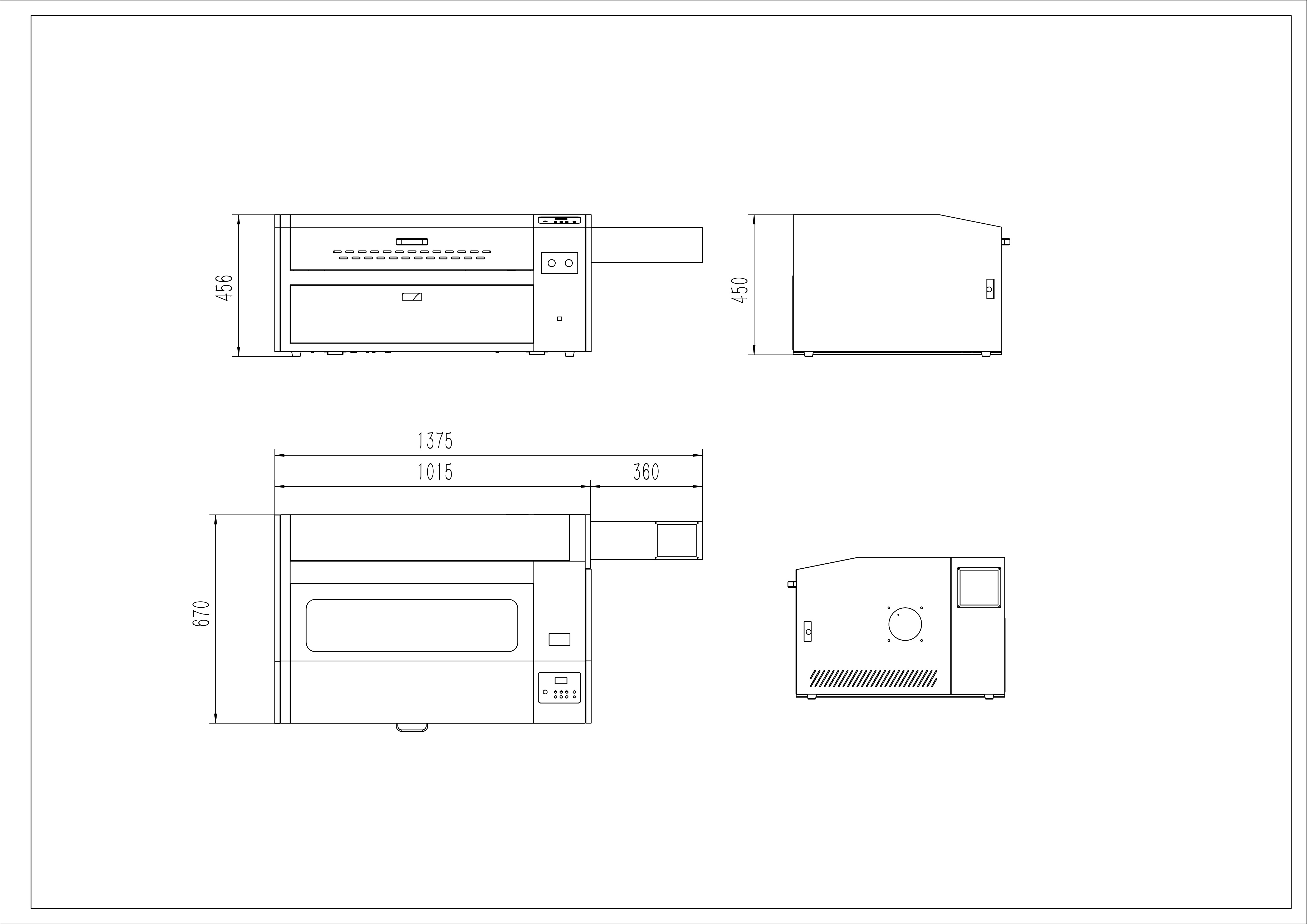

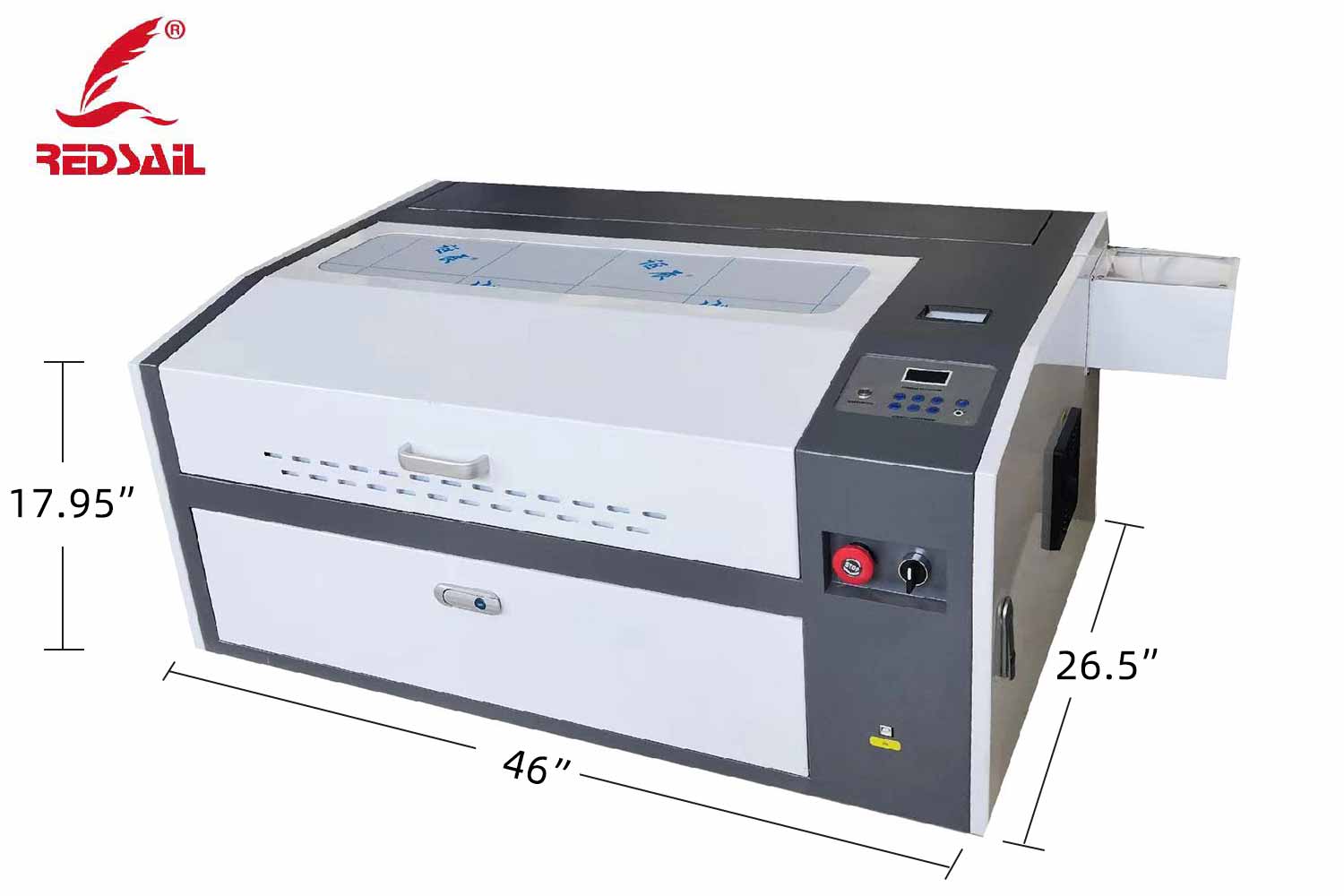

DIMENSIONS



M3050-50W



M3050-50W



M3050-60W



 M3050-60W

Product sample drawings
